INCLINATION

Soil Instruments In-place Inclinometer (IPI) Systems are used to remotely monitor lateral displacement within a vertical borehole.

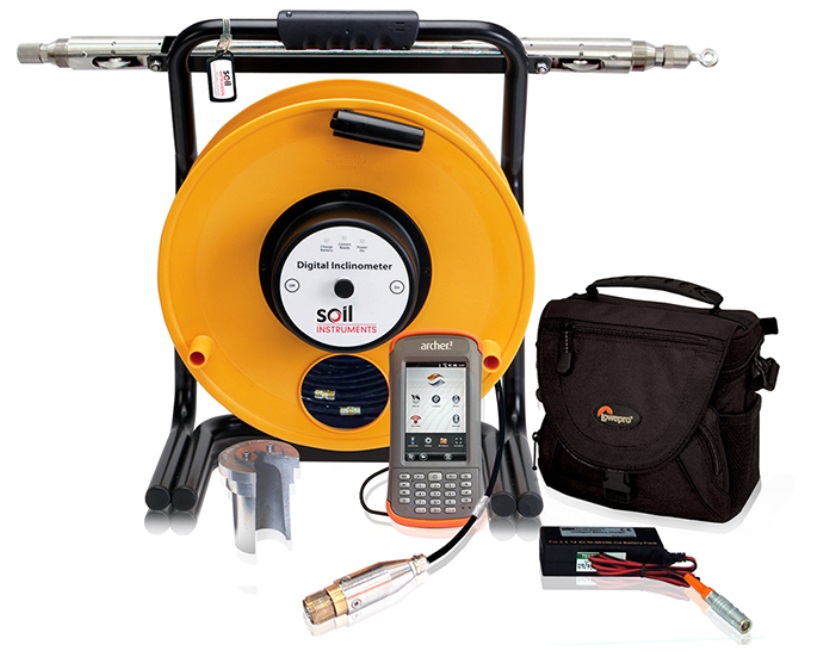

Horizontal Digital Inclinometer System

The Soil Instruments Horizontal Digital Inclinometer system has been specially developed for high accuracy and resolution measurement and monitoring of settlement or heave under embankments, dams, landfills, and storage tanks. The system is used to manually measure settlement and/or heave within a horizontal borehole.

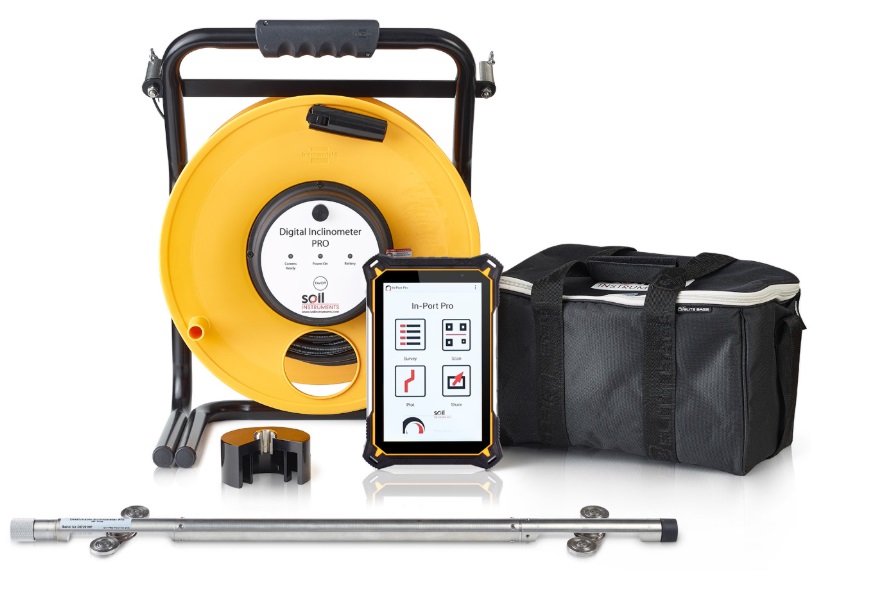

C17 Pro Vertical Digital Inclinometer System

The C17-PRO Vertical Digital Inclinometer System is used to measure lateral deflections within a borehole. The system comprises a biaxial probe, cable reel, and ultra-rugged Field Tablet supplied with ‘In-Port Pro’ data capture software..

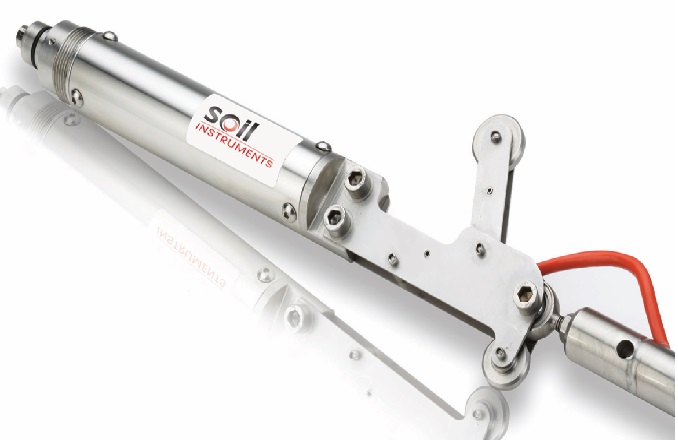

Smart In-place Inclinometer

The Smart In-Place Inclinometer (Smart IPI) System is used to remotely monitor lateral displacement within a vertical borehole It has been designed to supersede traditional IPI systems; with advanced technology and new mechanical design, the Smart IPI is seen as a new product rather than just an improvement to the old.

Standard Inclinometer Casing

Standard Inclinometer Casing is specially designed for inclinometer test systems and is typically installed in boreholes. However, its versatility renders it suitable for use in landfills, cast to concrete, or attached to structures. It is a specially manufactured ABS extrusion with precise keyways formed at 90° to each other. This allows the accurate orientation of inclinometer probes or In-Place Inclinometer Sensors (IPIs).The casing is jointed using standard or telescoping couplings.

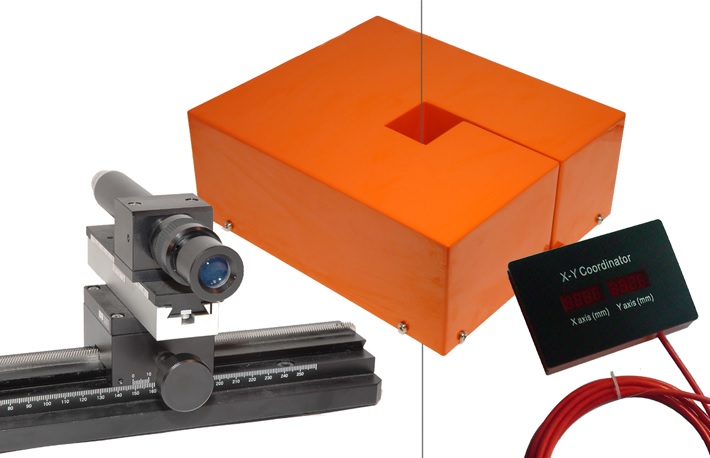

Inverted & Hanging Pendulum Systems

Inverted and hanging pendulum systems are used for accurate and long-term monitoring of horizontal structural movements of large structures such as dams, bridges, and other tall buildings..

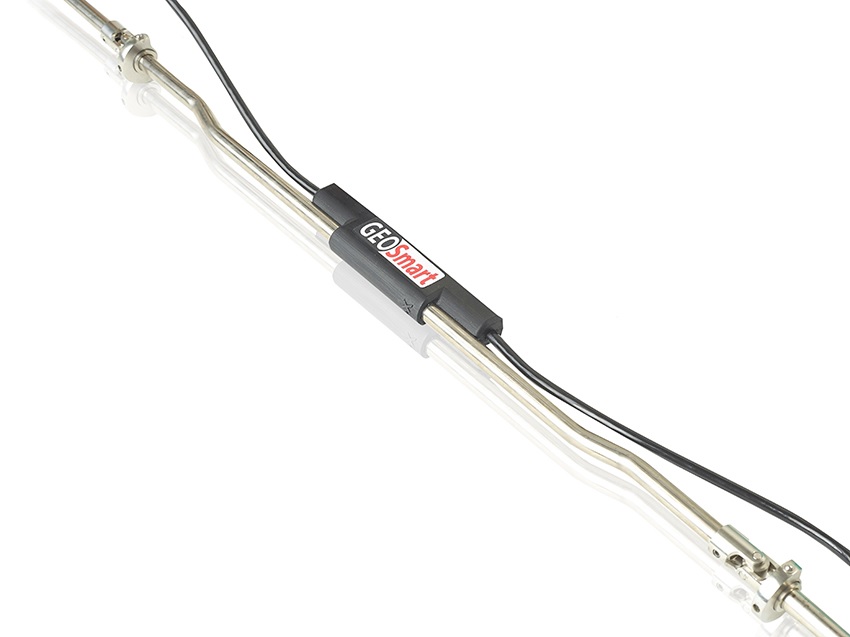

GeoSmart IPI

GEOSmart is an in-place inclinometer consisting of closely spaced MEMS (Micro-Electro-Mechanical Sensors) approximately 0.6m apart that are mounted on stainless steel tubing with a single cable running the length of the string which reduces the number of cables protruding from the top of the borehole. It is comprised of a biaxial probe, cable reel, and an ultra-rugged Field Tablet supplied with ‘In-Port Pro’ data capture software.
